Dry-Type Transformers

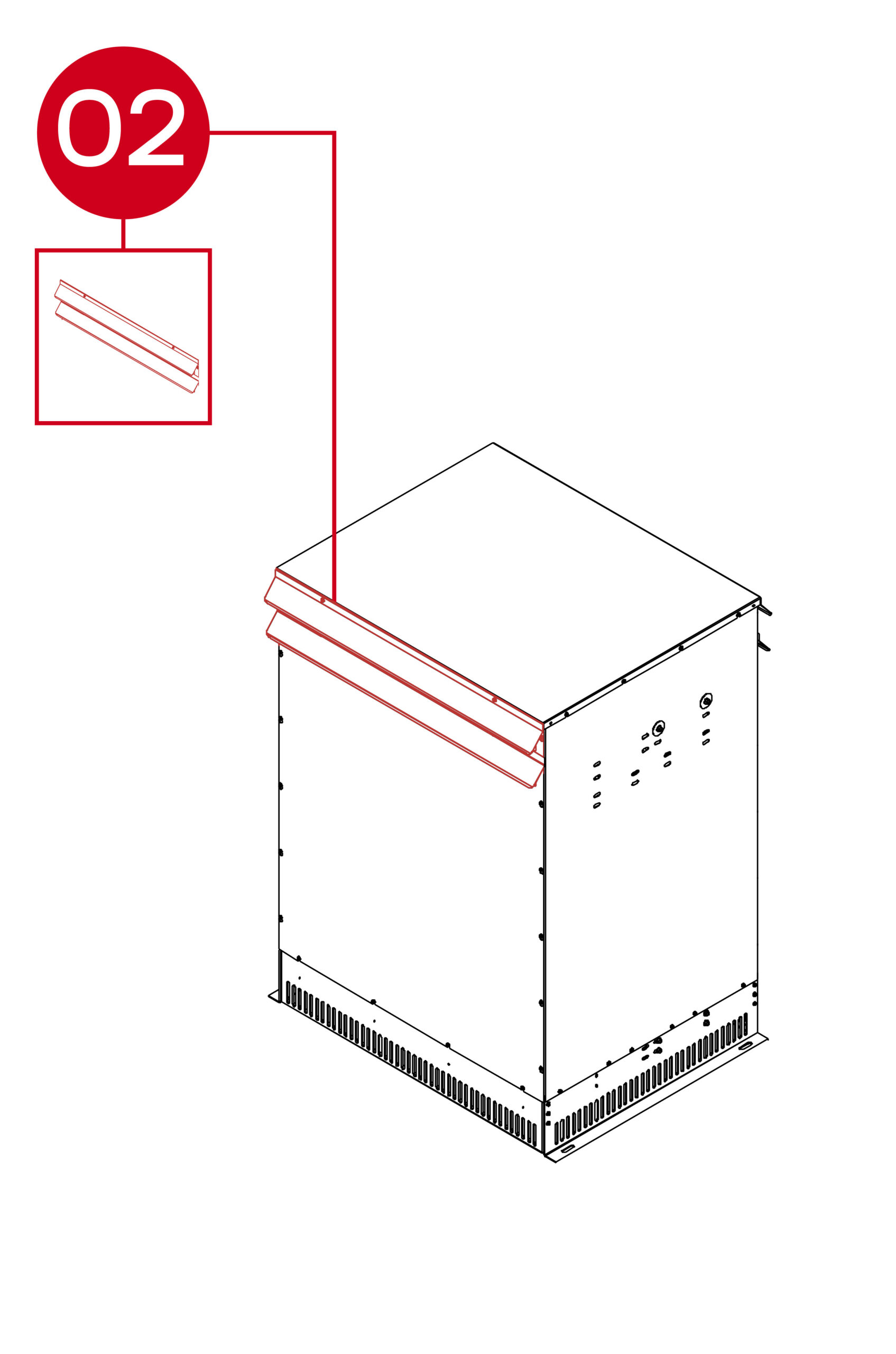

Cooling Louvres – Ventilation openings to promote heat dissipation.

• Location: On the sides or top panels of the enclosure.
• Layout: Angled metal slats designed to prevent debris entry while allowing airflow.
• Function: Regulates temperature by allowing natural air circulation through the transformer.

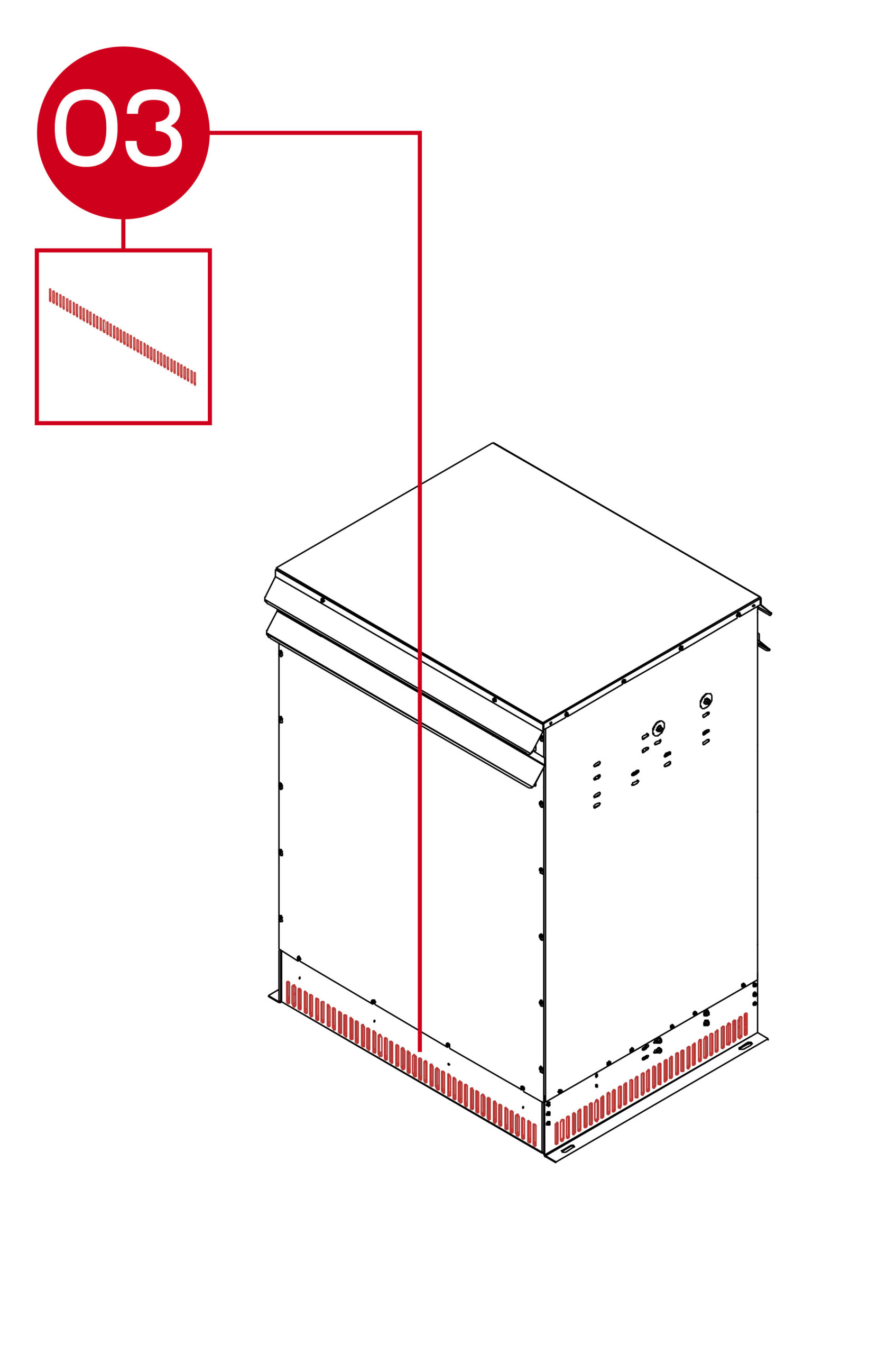

Cooling Vents – Additional airflow channels to enhance thermal performance.

• Location: Integrated throughout the enclosure body.
• Layout: Perforated or slotted openings strategically placed for convection cooling.
• Function: Supports heat dissipation to maintain optimal operating temperature and efficiency.

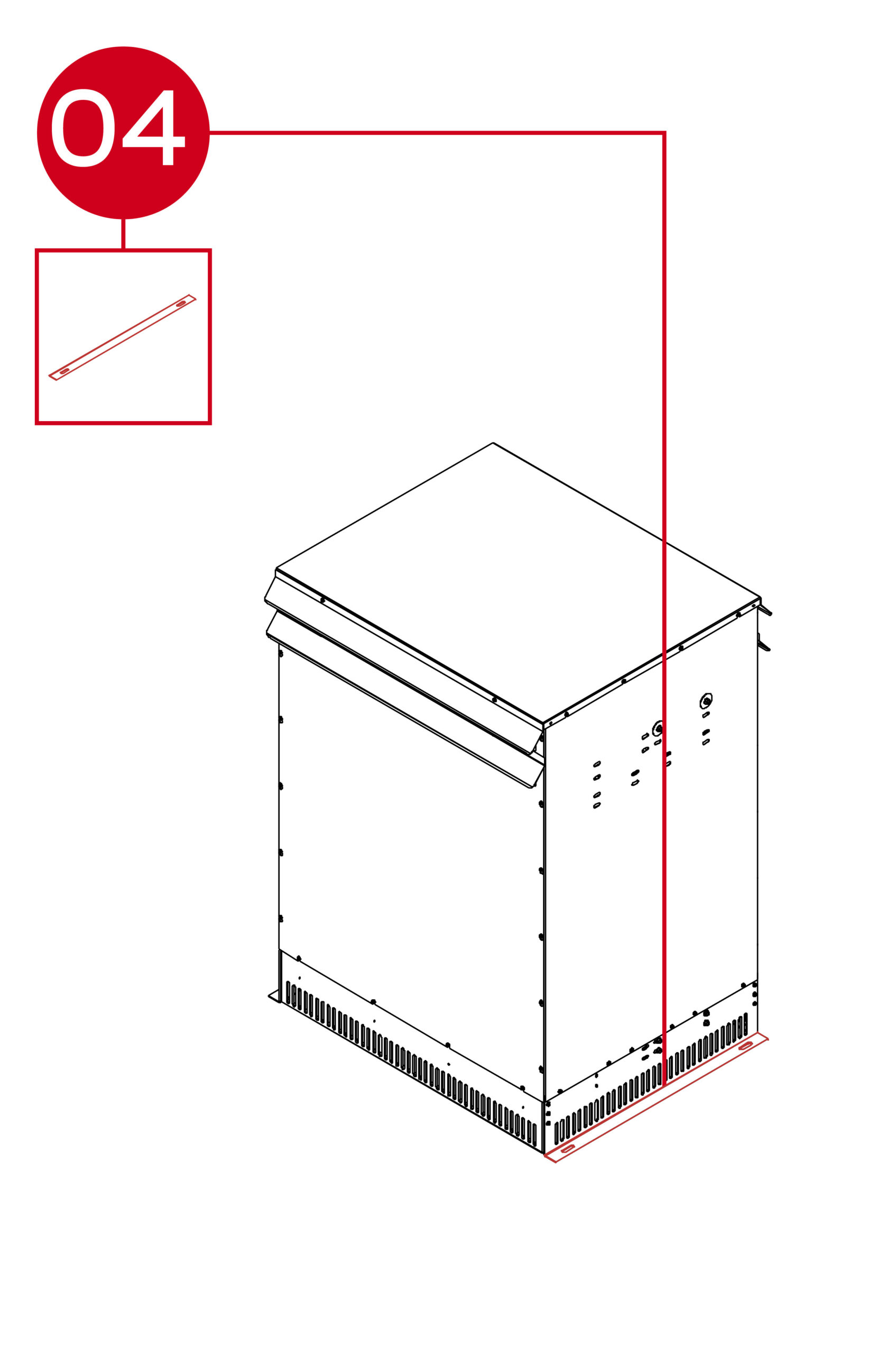

Mounting Frame – Structural base supporting the transformer components.

• Location: At the bottom of the transformer assembly.
• Layout: Heavy-duty steel framework designed for floor or skid mounting.
• Function: Provides mechanical stability and ensures secure placement during operation and transport.

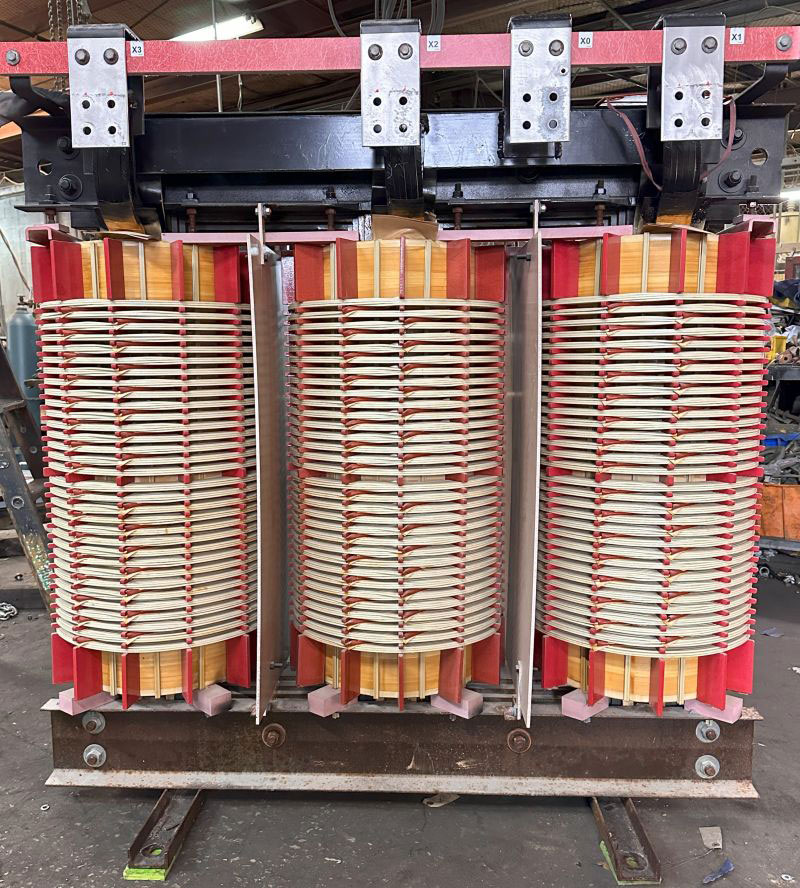

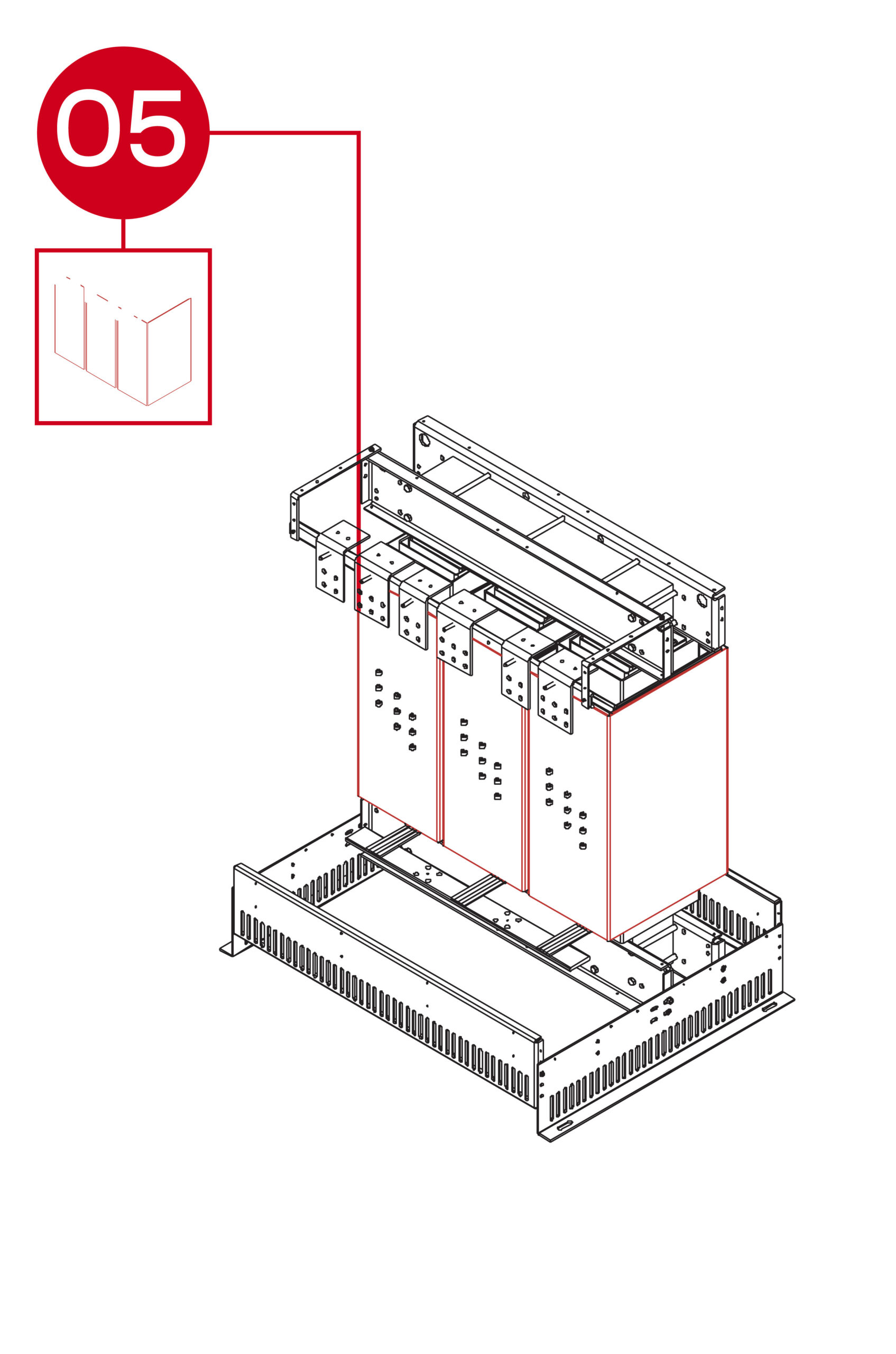

Core and Coil – The central assembly where magnetic induction and electrical transformation occur.

• Location: Housed within the transformer enclosure.
• Layout: Stacked laminated steel core with wound copper or aluminum coils insulated by high-temperature materials.
• Function: Transfers electrical energy between circuits through electromagnetic induction while minimizing losses.

High Voltage and Low Voltage Connections – Primary and secondary connection points for electrical input and output.

• Location: On the top of the transformer, typically using six L-shaped brackets.
• Layout: Clearly marked terminals for HV and LV, insulated and secured with bolted connectors.
• Function: Facilitates the electrical interface between supply and load circuits.

Neutral Bar on Wye Connections – Common connection point for grounding or neutral return.

• Location: Mounted adjacent to the low voltage terminals on the transformer top or side.
• Layout: Solid conductive bar linked to the neutral points of the LV windings.
• Function: Provides a return path for current and enables system grounding for safety and stability.

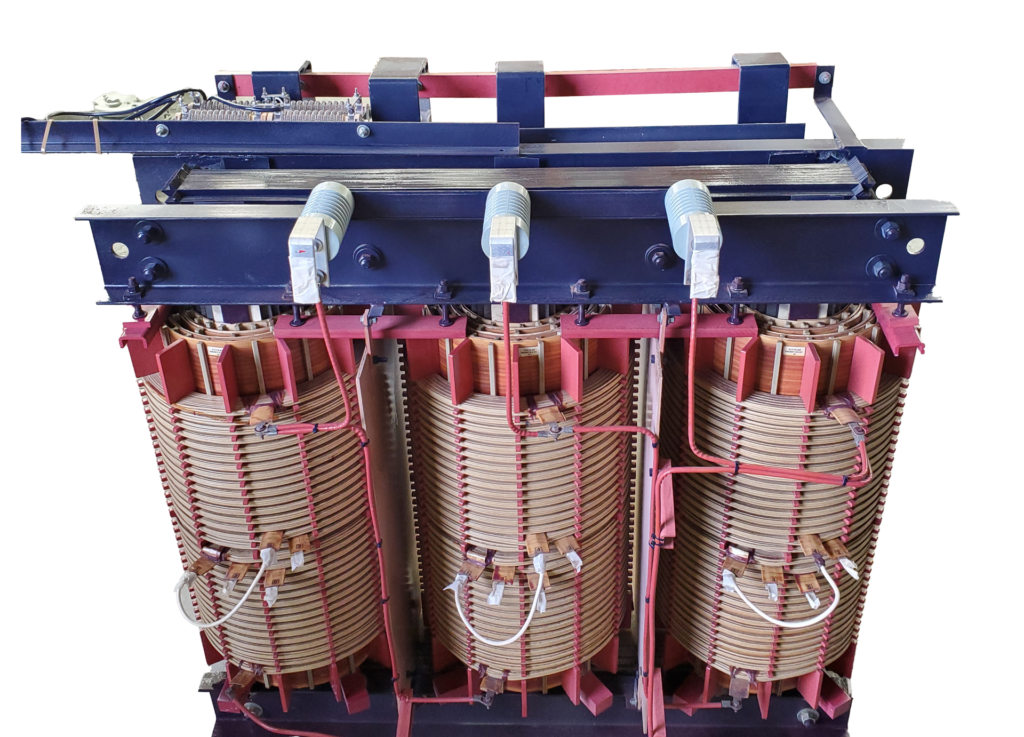

Voltage Correction Tap Tabs – Adjustment points for voltage fine-tuning under varying line conditions.

• Location: On the side of each phase winding, visible as nine small connection holes.
• Layout: Copper or brass tap plates marked with voltage adjustment positions.
• Function: Allows precise voltage matching and compensation for system variations.
